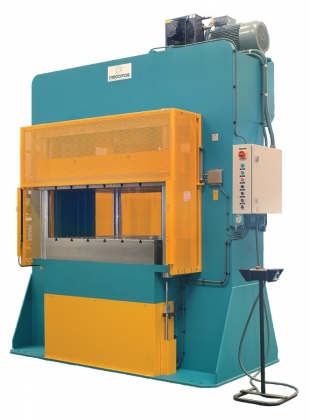

PHA-300
- 300 Tn power.
- 1.350 x 1.350mm usable bench measurements.
- 500 mm opening between benches.
- 300 mm upper bench route.
- Hydraulic motor with variable flow piston pump.
- 30 Hp engine power.
- 60 Tn. hydraulic cushion, with 1.200 x 1.200mm plate.
Features

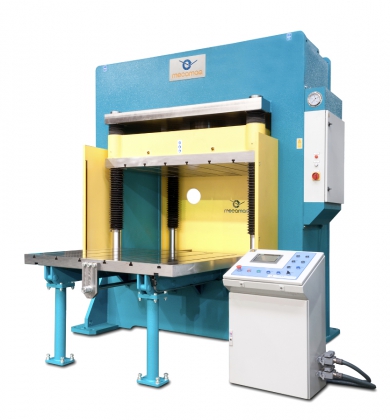

PHA-200
- Power of the machine 200 Tm by means of 1 main cylinder + 2 auxiliar cylinders for the fast speed.
- Upper and lower plates dimensions 1.400 x 1.400 mm.
- Upper plate guided by means of 4 cylindrical columns Ø100 with bronze fittings.
- Maximum opening between plates: 1.500 mm.
- Stroke of the cylinder: 1.100 mm.
- Main hydraulic system with hydraulic pump with variable volume of flow with fill up valve for the main cylinder.
- Approximation speed: 130 mm/seg.
- Recoil speed: 170 mm/seg.
- Maximum-minimum work speed: 25-9 mm/seg.
- Engine power: 20 Hp (15 Kw).
- Maximum pressure for hydraulic system 310 Bars.
- Control of the machine by means of SIEMENS tactile panel (7”).
- Photoelectric barriers for safe on the front side.
- Weight: 15.000Kg.
Features
| Power (tons) | 20 |
| Stroke (mm) | 250 |
| Columns Ø (mm) | 60 |
| Lower and upper plate (mm) | 400x400 |
| Maximum oppening (mm) | 350 |
| Engine power (HP) | 4 |
| Max. pressure (Bar) | 160 |
| Machine dimensions (m) | 0,85x0,60x1,85 |
| Weight (Kg.) | 900 |
