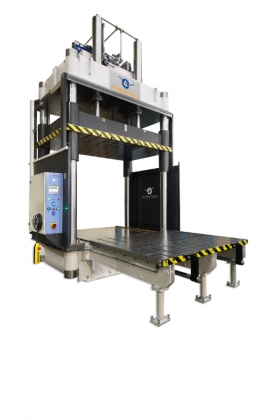

PHA300 5267
Features
| Power (tons) | 600 |
| Stroke (mm) | 700 |
| No. columns | 4 |
| Columns Ø (mm) | 120 |
| Lower and upper plate (mm) | 1500x1150 |
| Maximum oppening (mm) | 900 |
| Engine power (HP) | 40 |
| Approximation speed (mm/s) | 100 |
| Working speed (mm/s) | 5 |
| Max. pressure (Bar) | 300 |
| Cushion plate (mm) | 1250x1000 |
| Cushion power [tons] | 300 |
| Cushion stroke [mm] | 200 |
| Height (mm.) | 4180 |
| Width (mm.) | 2800 |
| Depth (mm.) | 2100 |
| Weight (Kg.) | 24500 |

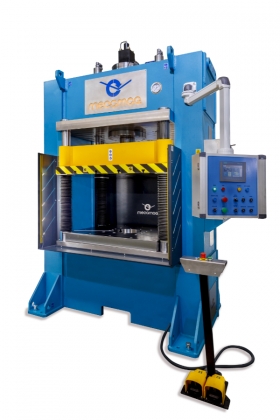

PHA300RC 5471
PLC&HMI 12".
Hydraulic cushion 125Tm.
Front console with movable arm.
Features
| Power (tons) | 300 |
| Stroke (mm) | 600 |
| No. columns | 4 |
| Columns Ø (mm) | 110 |
| Lower plate (mm) | 1200x1000 |
| Upper plate (mm) | 1200x1000 |
| Maximum oppening (mm) | 800 |
| Engine power (HP) | 25 |
| Approximation speed (mm/s) | 130 |
| Working speed (mm/s) | 5 |
| Max. pressure (Bar) | 320 |
| Cushion plate (mm) | 500x500 |
| Cushion power [tons] | 125 |
| Cushion stroke [mm] | 250 |
| Height (mm.) | 3470 |
| Width (mm.) | 2370 |
| Depth (mm.) | 1740 |
| Weight (Kg.) | 13000 |

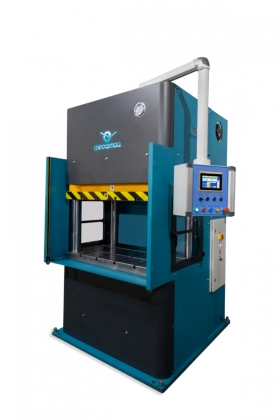

PHA100R 5231
PLC&HMI 7".
Front console with movable arm.
Features
| Power (tons) | 100 |
| Stroke (mm) | 300 |
| No. columns | 4 |
| Columns Ø (mm) | 90 |
| Lower plate (mm) | 700x700 |
| Upper plate (mm) | 700x700 |
| Maximum oppening (mm) | 700 |
| Engine power (HP) | 10 |
| Approximation speed (mm/s) | 140 |
| Working speed (mm/s) | 9 |
| Max. pressure (Bar) | 260 |
| Height (mm.) | 2875 |
| Width (mm.) | 1660 |
| Depth (mm.) | 1390 |
| Weight (Kg.) | 4700 |

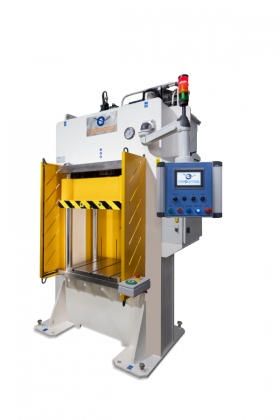

PHA100R 5429
PLC&HMI 7".
Front console with movable arm.
LED lighting.
Features
| Power (tons) | 500 |
| Stroke (mm) | 400 |
| No. columns | 4 |
| Columns Ø (mm) | 120 |
| Lower plate (mm) | 2500x1300 |
| Upper plate (mm) | 2500x1300 |
| Maximum oppening (mm) | 800 |
| Engine power (HP) | 30 |
| Approximation speed (mm/s) | 100 |
| Working speed (mm/s) | 4 |
| Max. pressure (Bar) | 295 |
| Height (mm.) | 3590 |
| Width (mm.) | 4320 |
| Depth (mm.) | 1830 |
| Weight (Kg.) | 29000 |

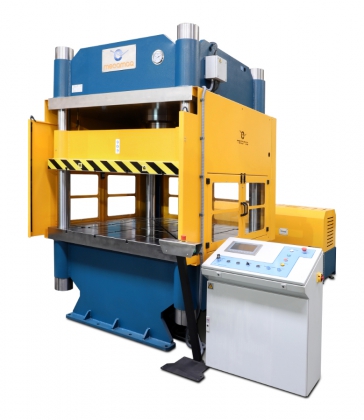

PHA300 5084
PLC&HMI 9".
Front desk with tactile panel.
Features
| Power (tons) | 300 |
| Stroke (mm) | 1500 |
| No. columns | 4 |
| Columns Ø (mm) | 200 |
| Lower and upper plate (mm) | 2200x1800 |
| Maximum oppening (mm) | 2200 |
| Engine power (HP) | 25 |
| Approximation speed (mm/s) | 25 |
| Working speed (mm/s) | 1-6 |
| Max. pressure (Bar) | 290 |
| Height (mm.) | 5250 |
| Width (mm.) | 3250 |
| Depth (mm.) | 4500 |
| Weight (Kg.) | 32500 |

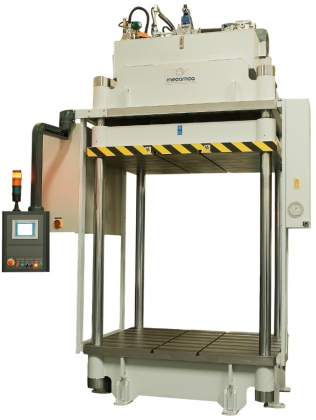

PHA-80
- Press MECAMAQ for production in the sector of the car, It has a power of 80 Tm.
- Dimensions of tables between columns of 1.400 x 1.400 mm, with an opening of 1.700 mm, and course of the top table of 500 mm.
- Hydraulic group with bomb of changeable wealth of maximum speed to 60 mm x second and work 15 mm x second.
- Power of the engine: 15 Hp.
- Maximum pressure: 250 Bars.
- Electrical box with automaton SIEMENS and tactile screen for the programming of all the parameters.
Features
| Power (tons) | 100 |
| Stroke (mm) | 320 |
| No. columns | 4 |
| Columns Ø (mm) | 110 |
| Lower plate (mm) | 1000x800 |
| Upper plate (mm) | 1000x800 |
| Maximum oppening (mm) | 600 |
| Engine power (HP) | 10 |
| Approximation speed (mm/s) | 140 |
| Working speed (mm/s) | 25-9 |
| Max. pressure (Bar) | 260 |
| Height (mm.) | 2700 |
| Width (mm.) | 1500 |
| Depth (mm.) | 1720 |
| Weight (Kg.) | 6850 |

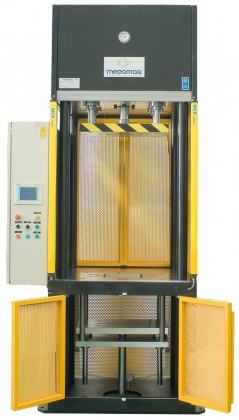

PHA-8
- Press MECAMAQ for injection, It has a power of 8 Tm.
- The low table is of 800 x 700 mm and the superior 650 x 400 mm, the plate ejector is of 700 x 350 mm.
- The maximum opening between tables 1.200 mm, and the principal cylinder has a course of 900 mm.
- Auxiliary connections for holes, mouthpieces and closing of the molds.
- All the movements are controlled for encoder linearly and are programmable by means of tactile digital screen.
- Chassis made of 4 cylindrical columns of Ø80 mm and protections for doors with switches and photoelectric barriers of safety.
Features
| Power (tons) | 300 |
| Cylinder stroke (mm) | 500 |
| No. columns | 4 |
| Columns Ø (mm) | 130 |
| Lower plate (mm) | 1400x1400 |
| Upper plate (mm) | 1400x1400 |
| Maximum oppening (mm) | 600 |
| Engine power (HP) | 25 |
| Approximation speed (mm/s) | 27 |
| Working speed (mm/s) | 6 |
| Max. pressure (Bar) | 320 |
| Height (mm.) | 3000 |
| Width (mm.) | 2200 |
| Depth (mm.) | 2000 |
| Weight (Kg.) | 16500 |

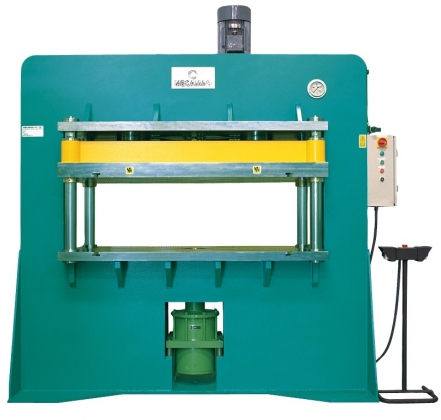

PHA-120
- 120 Tn. two-cylinder power.
- 1.800 x 900 mm benches.
- 500 mm opening between benches.
- 200 mm upper bench route.
- 2 speeds, approximation and operation.
- 7.5 Hp engine power.
- Course control via end of travel.
- Pressure control via electrical pressure switch.
- Equipped with cushion.
Features
| Power (tons) | 600 |
| Columns Ø (mm) | 110 |
| Lower and upper plate (mm) | 1200x1100 |
| Maximum oppening (mm) | 900 |
| Engine power (HP) | 40 |
| Approximation speed (mm/s) | 100 |
| Working speed (mm/s) | 5 |
| Max. pressure (Bar) | 280 |
| Height (mm.) | 22000 |
| Machine dimensions (m) | 2,45x1,90x4,10 |

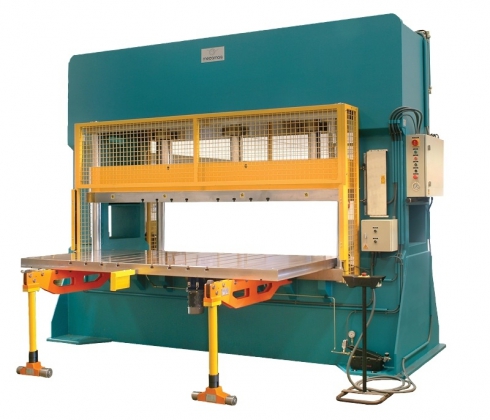

PHA-350
Press for die-casting tests
- 350 Tn power, via 3 cylinders.
- .3.000 x 1.200mm workbench.
- 950 mm opening between benches.
- 500 mm upper bench route.
- Hydraulic motor with variable flow piston pump.
- 40 Hp engine power.
- Extractable motor-driven lower bench.
Features
| Power (tons) | 200 |
| Stroke (mm) | 600 |
| Columns Ø (mm) | 100 |
| Lower and upper plate (mm) | 1500x1300 |
| Maximum oppening (mm) | 900 |
| Engine power (HP) | 20 |
| Approximation speed (mm/s) | 130 |
| Working speed (mm/s) | 1-10 |
| Max. pressure (Bar) | 320 |
| Machine dimensions (m) | 2,65x2,70x3,35 |
| Weight (Kg.) | 15000 |
