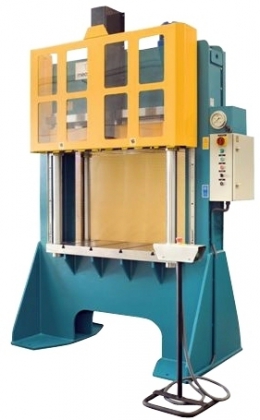

• 40 tons capacity.
• 1.000 x 550 mm usable plate measures.
• 4 track slide guidance.
• 800 mm opening between plates.
• 250 mm upper plate slide.
• Two-speed, proximity and operation.
• 4 HP engine power.
• Pneumatic door of security.

Aluminium Triming Press

• 30 tons capacity.
• 950 x 750 mm usable plate measures.
• 900 mm opening between plates.
• 300 mm upper plate slide.
• Two-speed gravity controlled slope.
• 12.5 HP engine power.
• Machine weight: 4.200 Kg / 4.2 tons.

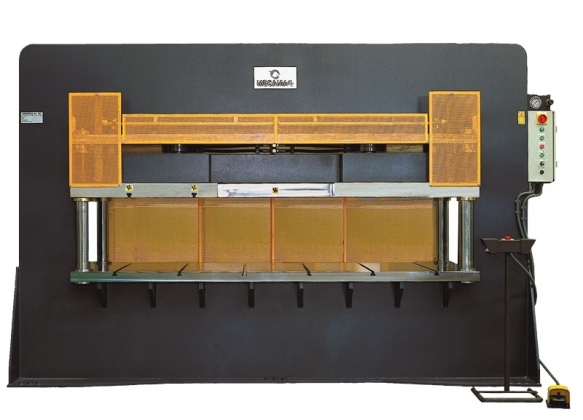

• 100 Tn power via two cylinders.
• 2.800 x 1.000mm benches.
• 500 mm opening between benches.
• 100 mm upper bench route.
• 2 speeds, approximation and operation.
• 10 Hp engine power.
• Course control via end of track.
• Pressure control via electrical pressure switch.

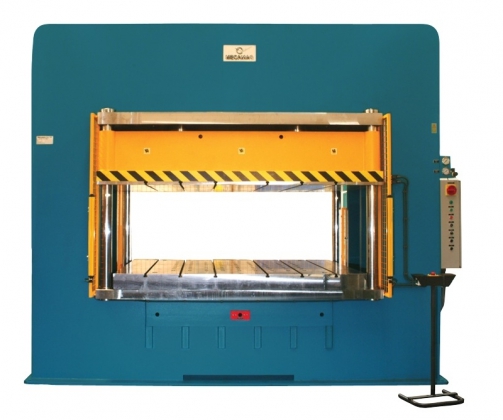

• Hydraulic press MECAMAQ type rigid arcade, with guided upper plate by 4 cylindrical columns, 400 tons.
• Reference PHA-400.
• 400 Tm capacity.
• The upper plate is activated with 3 cylinders.
• Stroke of cylinders 250 mm.
• Upper plate dimensions 2100 x 900 mm.
• Lower plate 2100 x 900 mm.
• Upper plate is guided by 4 cylindrical columns Ø140 mm with bronze sleeves.
• Maximum opening between plates 900 mm.
• Hydraulic group with pistons pump variable volume of flow.
• Approximation speed: 17 mm x second.
• Work speed: 55 mm x second.
• The maximum pressure of the hydraulic group is 270 bars.
• 25 Hp engine power with star/delta starting mechanism.
• Regulation of the stroke distanceand pressure of work with tactile panel (encoder and transductor).
• Machine weight: 17.000 Kg / 17 Tons.
• Applications: press for die tests.

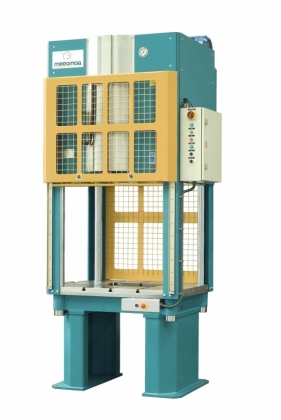

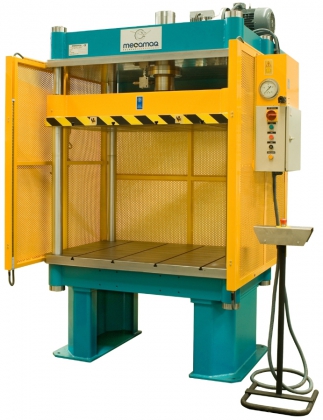

• The press MECAMAQ type PHA-30, it has a power of 30 Tm, by means of a cylinder of double effect.
• The dimensions of the tables are of 1.200 x 1.000 mm between columns, with 4 guides Ø80 mm and tips of bronze.
• The course of the top table, 400 mm and the maximum opening between tables, 900 mm.
• Hydraulic group with 2 speeds, rapid speed 70 mm x second and speed of work, 23 mm x second.
• The regulation of courses of work is for ends of stops and that of pressure for electrical switch.
• He has photoelectric barriers of CAT-4.

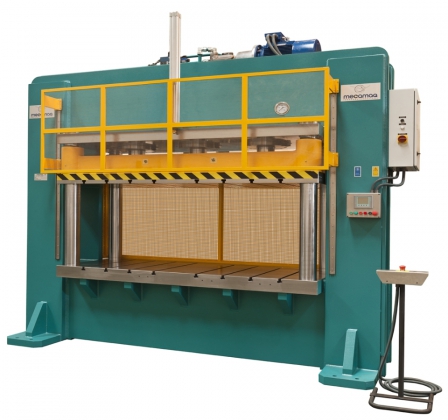

• 400 Tn power, via 4 cylinders.
• 2.500 x 1.500 mm usable bench measurements.
• 1.000 mm opening between benches.
• 500 mm upper bench route.
• Hydraulic motor with variable flow piston pump.
• 50 Hp engine power.
• 100 Tn hydraulic cushion, with 1.500 x 1.000 mm plate.
• Weight: 35.000 Kg approx.

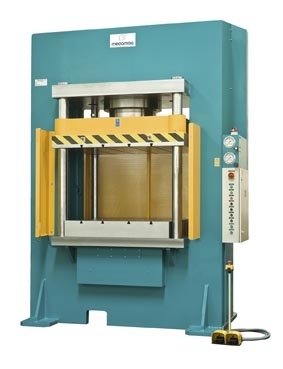

• Press MECAMAQ of manufacture to measure, used for works of forming and cut of lids of deposits and vats.
• Power 500tm with a surface of work useful 1.200 x 1.200 mm.
• Opening maximum between tables of 800 mm and course of 500 mm.
• Hydraulic cushion of double effect and 250 Tm with a plate of 750 x 750 mm.
• Hydraulic group Bosch Rexroth with bomb of pistons of changeable wealth driven by an engine of 30 Hp, obtaining a speed of 25 mm x second.
• All the adjustments of course, change speed, pressures and times so much of the press like the cushion are realized by a control by tactile screen of programming. Incorporates system of antifallen safety of the mobile table and protection of the zone of work into photoelectric safety fences.
• The weight of the machine is of 25.000 Kg.

• Press MECAMAQ of manufacture to measure, used for the manufacture of signs and informative panels in road.
• It has a power of 200 Tm with useful tables between columns of 2.300 x 1.300 mm.
• The opening between tables is of 1.200 mm and the course of 500 mm.
• Hydraulic group Bosch Rexroth with bomb of pistons of changeable wealth, driven by an engine of 20 Hp.
• The machine takes installed a hydraulic cushion of 80 Tm with a plate of 1.200 x 800 mm guided by four cylindrical columns.
• Ride installed a system of antifallen safety of the mobile table and protection of the zone of work with safety fences.

• Hydraulic press MECAMAQ 200 Tm type PHA-200-C
• 200 Tm capacity with 1 double effect cylinder 600 mm of stroke
• Lower plate 800 x 800 mm
• Upper plate 800 x 800 mm
• Maximum opening between plates 800 mm
• Hydraulic group with pistons pump of variable flow
• Engine power 15 Hp
• Hydraulic cushion with 100Tm capacity with plate 700 x 700 mm
• Hydraulic ejector 10 Tm capacity
• Photoelectric barrier for safe on front side
• Application: deep drawing for steel pieces
